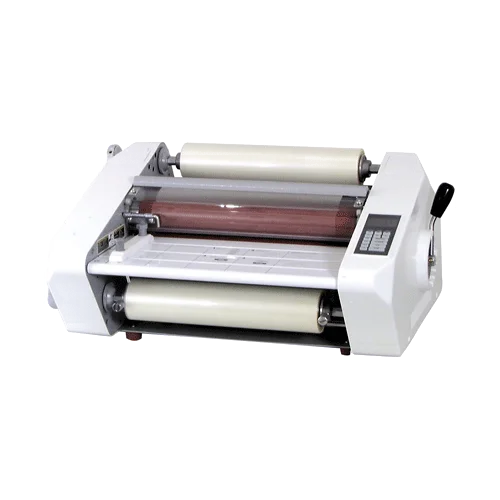

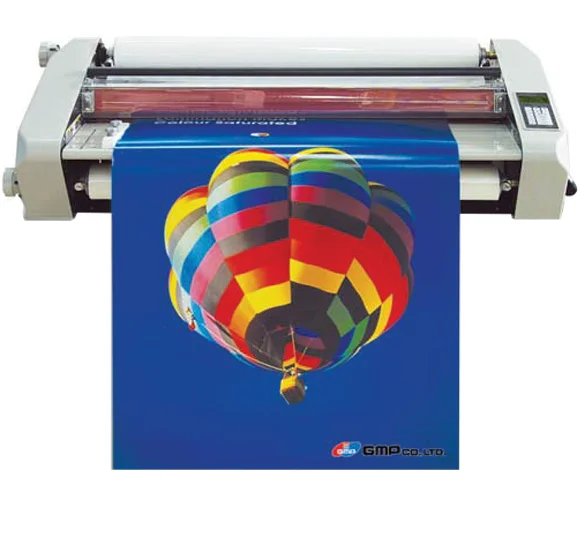

GMP Excelam Q-serie 355, 655, 1080 roll-laminators

Price on request

Request Price
The GMP Excelam Q-series consists of three flexible roll laminators, suitable for two-sided lamination / plasticization / encapsulation.
More information / Download PDF
Do you have any questions about this product? Contact us now: +31 162 486 286
SKU: GMPEXS355
Categories: , ,
Tags: , ,

Description

The GMP Excelam Q-series consists of three flexible roll laminators, suitable for two-sided lamination / plasticization / encapsulation. The top and bottom temperatures can be set separately. Hotrol technology ensures a perfect lamination result of solid surfaces and photos. The system has an aerodynamic cooling system and is also equipped with a knife for quickly separating laminated sheets.
• Ergonomic operation by means of touch screen
• Hotroller technology, from the inside by means of infrared heated
• Speed and temperature control
• Hot and cold lamination
• Stick on (mounting) up to 5 mm foam
• Variable adjustment of the distance between the rollers up to 5 mm
• Accurate temperature measurement with thermocouple sensor
• Adjustable foil tension
• Speed control from 0.7 – 3 m per minute
• Paperguide
• Aerodynamic Cooling System
GMP Excelam-Q series 355 655 1080
Laminating Speed Up to 3 m/min Up to 3 m/min Up to 3 m/min
Transit width 355 mm 655 mm 1080 mm
Film thicknesses 25 – 500 micr. 25 – 500 micr. 25 – 500 micr.
Paper weight 80 – 350 g/m2 80 – 350 g/m2 80 – 350 g/m2
sticking/mounting Up to 5 mm Up to 5 mm Up to 5 mm
Roller diameter, front, rear 55 mm, 30 mm 55 mm, 30 mm 55 mm, 30 mm
Power consumption 1700 W / 7 A 2000 W / 8,3 A 2800 W / 11,6 A
Warm-up time 8 minutes 8 minutes 8 minutes
Heating System Infrared hot roller Infrared hot roller Infrared hot roller
Working temperature 150 0C 150 0C 150 0C
Speed and temperature control touchscreen touchscreen touchscreen
Adjustable roller pressure Core Dimensions Manual, 6 steps 25 mm 610 x 450 x 290mm Manual, 6 steps 25 mm 910 x 450 x 290mm Manual, 6 steps 58 mm 1380 x 450 x 1040mm
